General Espar Maintenance

General Espar Maintenance

Recommended Periodic Maintenance
  1. Remove the glow pin and inspect for carbon build up. Clean or replace.
  1. Remove the glow pin screen and inspect for carbon build up. Replace.
  1. Make sure the vent hole is not clogged.
  1. Inspect the ducting, the air intake screen, and air outlet for restriction or blockage.
  1. Inspect the combustion air intake and exhaust for blockage.
  1. Operate your heater for a minimum of 20 minutes each month.
  1. Maintain your batteries and all electrical connections in good condition. With insufficient power the heater will not start. Low and high voltage cutouts will shut the heater down automatically.
  1. Use fuel suitable for the climate (see fuel supplier recommendations). Blending used engine oil with diesel fuel is not permitted.
Other Maintenance Tips:
  1. Be sure the van's battery system is receiving sufficient voltage; check the incoming voltage on your van's inverter monitor screen.  If the battery system has low voltage, the Espar will not be able to start.
  2. Know whether your Espar runs on gasoline or diesel and use the appropriate fuel when refueling your van.
  3. Periodically do a visual check of all electrical lines and connections for damage or corrosion.
  4. Periodically do a visual check of the fuel line for leaks.

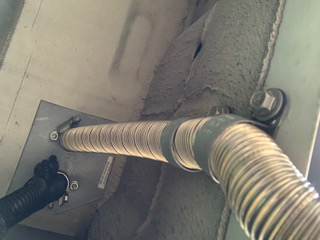

  5. Make sure the exhaust pipe (photo below) is not touching the electrical or fuel lines, as it may cause these lines to melt.

  7. Periodically check and replace the fuel filter inserts.

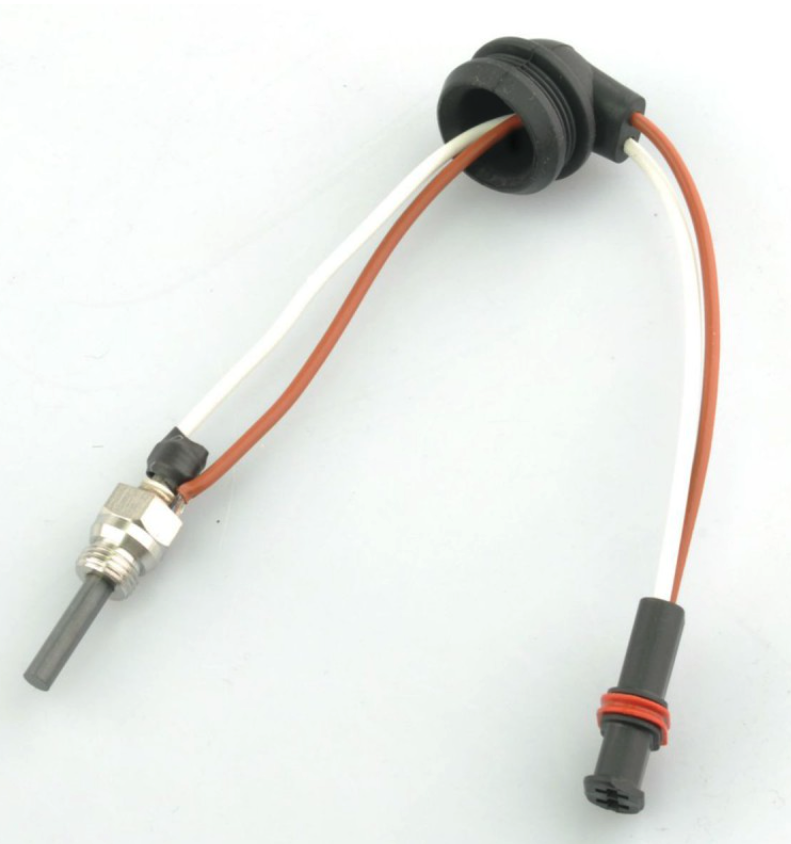

  8. Periodically check the glow pin (photo below) and replace as necessary.

  10. Once a year, replace the screen, filters, and gaskets.
  11. Periodically inspect the blower motor for visual signs of damage.
  12. Periodically inspect the duct system, and make sure there is no contamination, dust, or blockages.
T his video provides a helpful guide to performing a visual inspection of your Espar heater.   (Please note that the video shows a different Espar model than the one you have in your van, but the information still applies.)

The diagram below is helpful in understanding the parts that make up the Espar heater:


If your Espar heater is malfunctioning, click the appropriate Knowledge Base article(s) below for troubleshooting steps:

  1. Espar Heater Not Working
  1. Espar Heater "Motor Speed" Error Code
  2. Smell of Gas while Espar Is Running
Interested in having your Espar serviced?  Reach out to the Vandoit Customer Support team to schedule an appointment at the Vandoit facility.

If the information above does not provide the direction you are seeking, please contact the Customer Support team by submitting a ticket through the Customer Support portal or emailing support@vandoit.com.
