Espar Heater Error Codes

Espar Digi-Max D-1000 Controller Error Codes

Article Objective:

In this article, you will learn what the error codes on the Espar Digi-Max D-1000 controller mean, what causes them, how to resolve them, and how to clear the error codes.

Affected Units:

Vandoit vans with the Eberspaecher Digi-Max D-1000 controller installed

Issue Explanation:

The Espar Digi-Max D-1000 controller can display numeric error/fault codes when something prevents the system from operating normally.  Understanding these codes can help you resolve the issue and get your Espar back to operational.

Resolution:

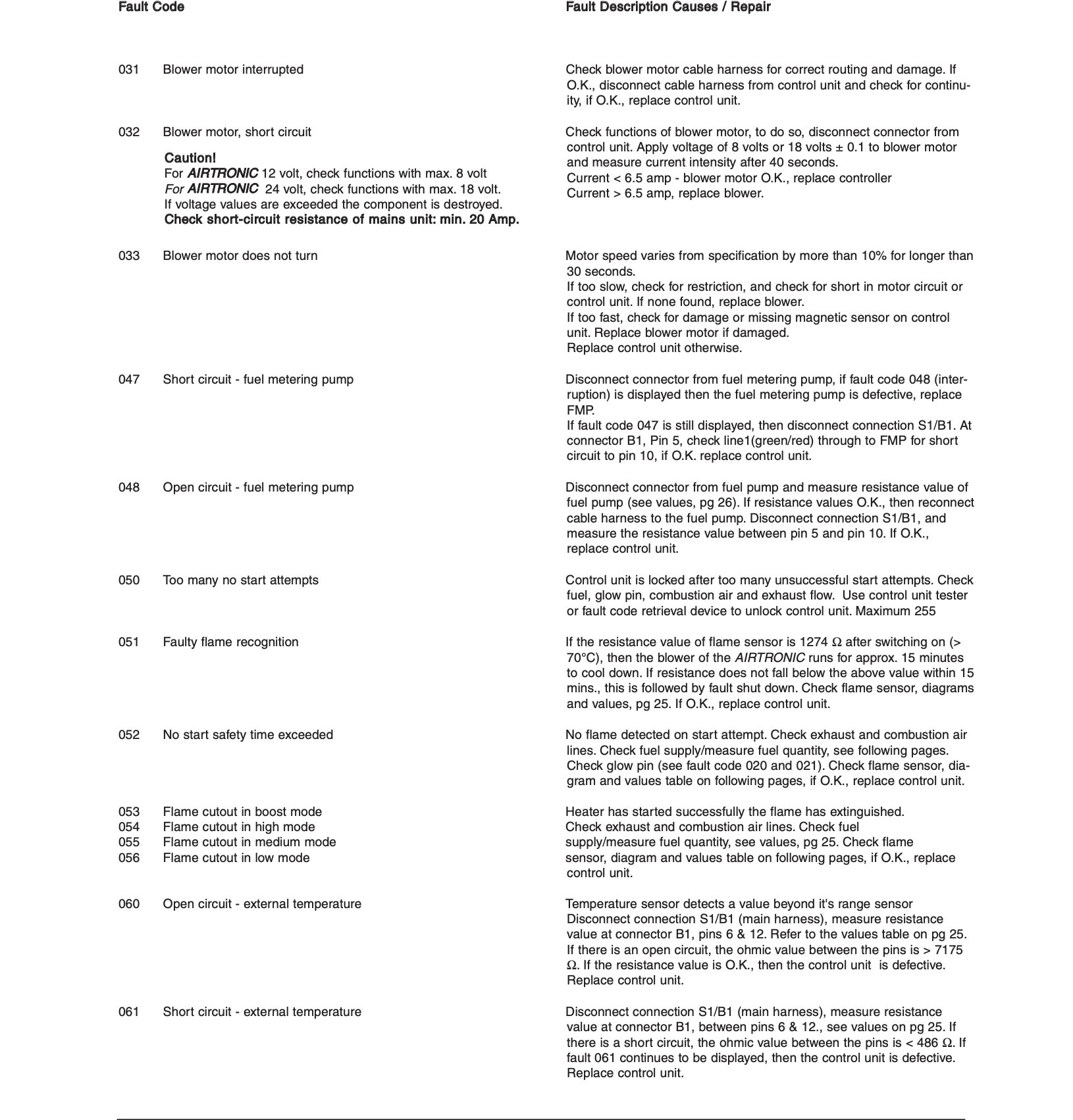

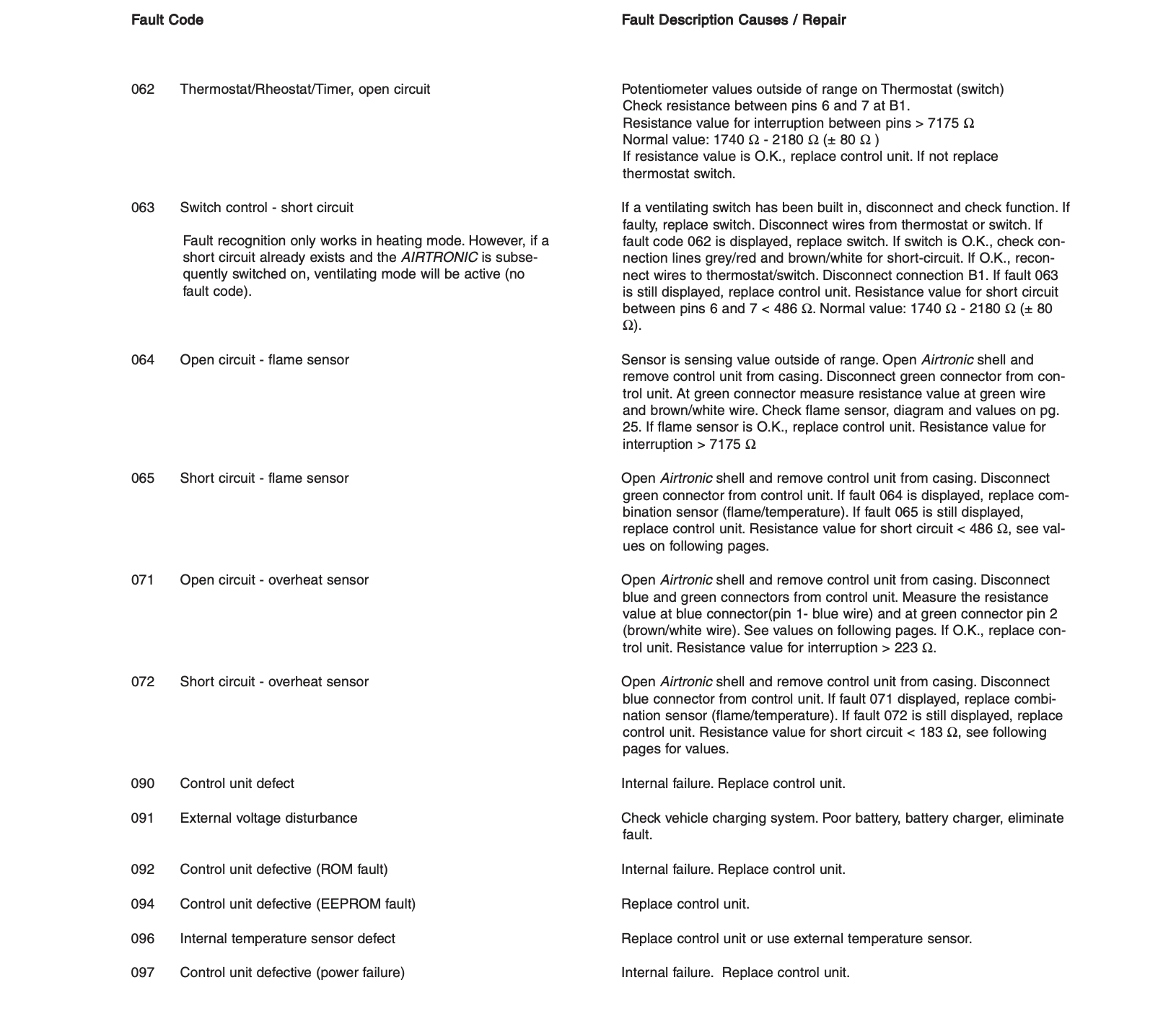

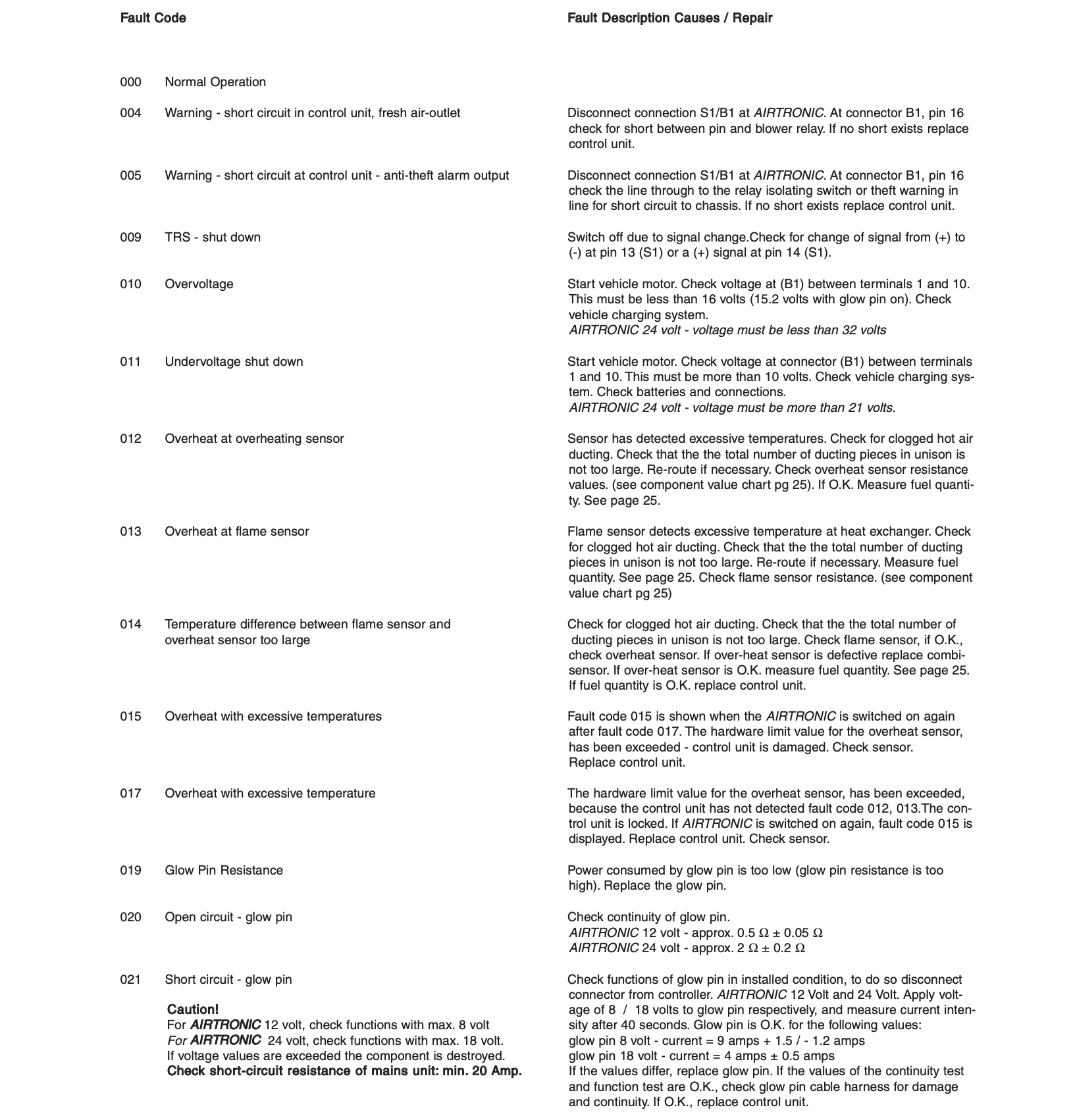

See the list of fault codes below.  This list is from the Espar heater user manual; the full manual can be found here.





To clear a fault code, please follow the instructions below.



Notes
If, after following the instructions to clear a code, it does not clear all codes and your Espar is still not operating correctly, submit a ticket through the Customer Support portal or email support@vandoit.com with a description of the issue you are encountering, along with photos of any remaining fault codes present on your Espar Digi-Max D-1000.
